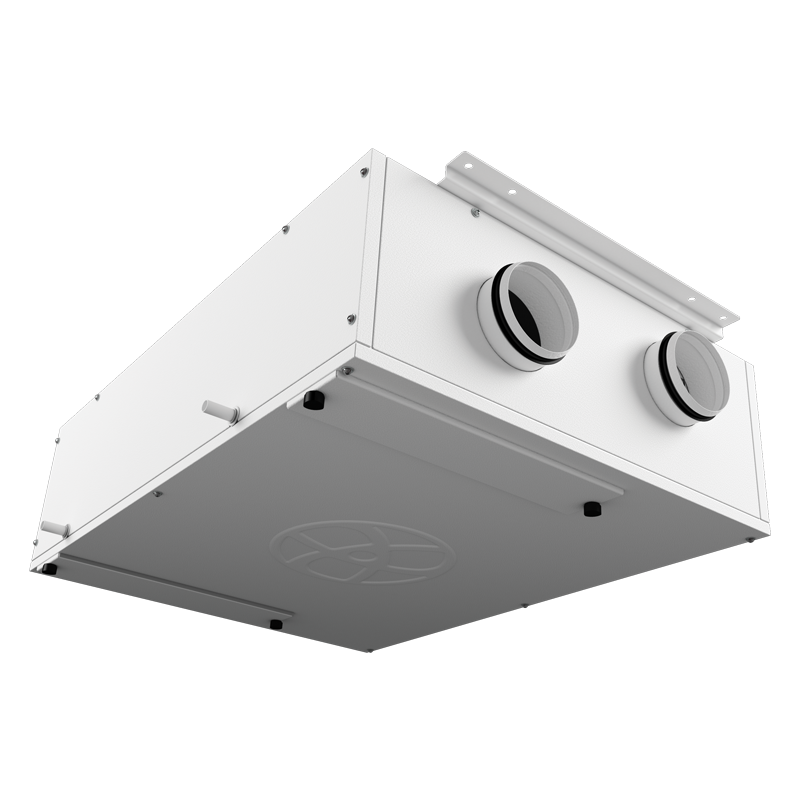

Series Blauberg KOMFORT EC DB

Suspended heat recovery air handling units

Heat exchanger type: Counter flow
Heat exchanger material: Polystyrene
Sound-insulated casing
Bypass: Manual
BMS protocol: ModBus
CO2 sensor: Optional
PM2.5 sensor: Optional

Lineup Blauberg KOMFORT EC DB	Maximum airflow, m³/h	Service side	Control system	Preheater	Reheater	BMS protocol
KOMFORT EC DB 160 R S21	190	Right	S21	Optional	Optional	ModBus
KOMFORT EC DB 160 L S21	190	Left	S21	Optional	Optional	ModBus
KOMFORT EC DB 160 R S14	190	Right	S14			N/A
KOMFORT EC DB 160 L S14	190	Left	S14			N/A
KOMFORT EC DB 250 R S21	270	Right	S21	Optional	Optional	ModBus
KOMFORT EC DB 250 L S21	270	Left	S21	Optional	Optional	ModBus
KOMFORT EC DB 250 R S14	270	Right	S14			N/A
KOMFORT EC DB 250 L S14	270	Left	S14			N/A
KOMFORT EC DB 350 R S21	410	Right	S21	Optional	Optional	ModBus
KOMFORT EC DB 350 L S21	410	Left	S21	Optional	Optional	ModBus
KOMFORT EC DB 350 R S14	410	Right	S14			N/A
KOMFORT EC DB 350 L S14	410	Left	S14			N/A
