/ Product catalogue / Air handling units / Crossflow commercial AHU / Horizontal Units / KOMFORT LW / KOMFORT LW 1100-4
| Unit of measurement | KOMFORT LW 1100-4 | |
| Phases | - | 1 |
| Minimum supply voltage | V | 230 |
| Maximum supply voltage | V | 230 |
| Power supply frequency | Hz | 50/60 |
| Maximum airflow | m³/h | 1100 |
| Heat recovery efficiency, max | % | 78 |
| Heat exchanger type | - | Cross flow |
| Heat exchanger material | - | Polystyrene |
| Weight | kg | 85 |
| Transported air temperature (max) | °С | 40 |
| Transported air temperature (min) | °С | -25 |
| Ambient air temperature min | °С | 1 |
| Ambient air temperature max | °С | 40 |
| Ingress protection rating | - | IP22 |
| Ambient air humidity max | % | 80 |
| Ingress protection rating of the drive | - | IP44 |

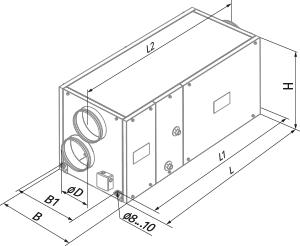

| ØD | B | B1 | H | L | L1 | L2 |
|---|---|---|---|---|---|---|
| 249 | 613 | 460 | 698 | 1071 | 1117 | 1171 |
| Name | Photo | Description |
|---|---|---|
| Blauberg FP 550x253x48 G4 |
|
G4 panel filter |
| Blauberg SB C4 300/384 |
