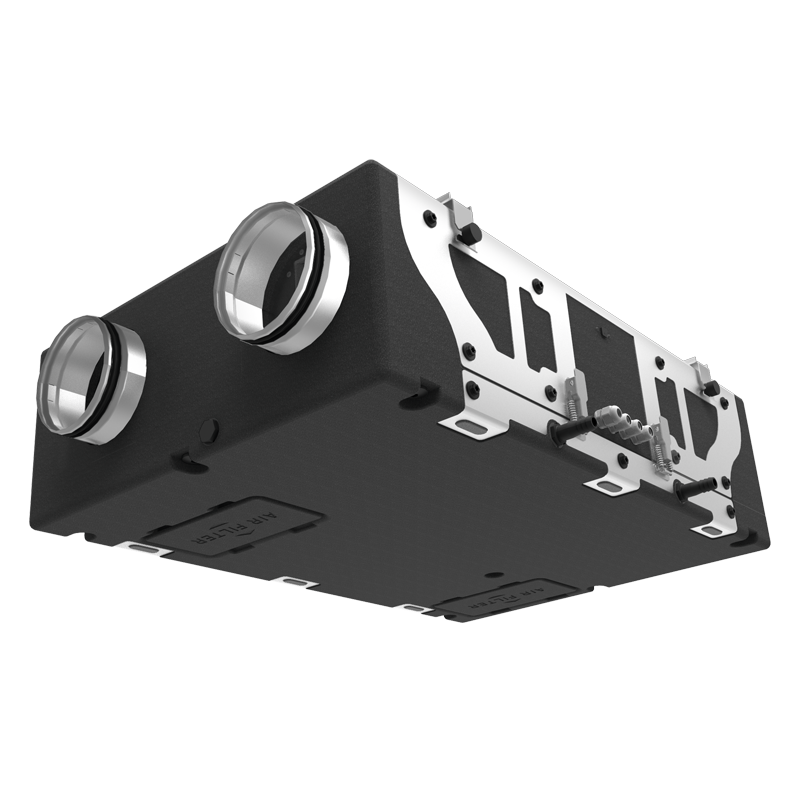

/ Product catalogue / Air handling units / Counterflow residential AHU / Suspended Units / KOMFORT EC D5B 180 / KOMFORT EC D5B 180-E S21
| Unit of measurement | KOMFORT EC D5B 180-E S21 | |
| Phases | - | 1 |
| Minimum supply voltage | V | 230 |
| Maximum supply voltage | V | 230 |
| Power supply frequency | Hz | 50/60 |
| Maximum airflow | m³/h | 220 |
| Heat recovery efficiency, max | % | 94 |
| Heat exchanger type | - | Counter flow |
| Heat exchanger material | - | Enthalpy |
| Weight | kg | 14 |
| Transported air temperature (max) | °С | 40 |
| Transported air temperature (min) | °С | -25 |
| Ambient air temperature min | °С | 1 |
| Ambient air temperature max | °С | 40 |
| Ingress protection rating | - | IP22 |
| Ambient air humidity max | % | 60 |
| Ingress protection rating of the drive | - | IP44 |

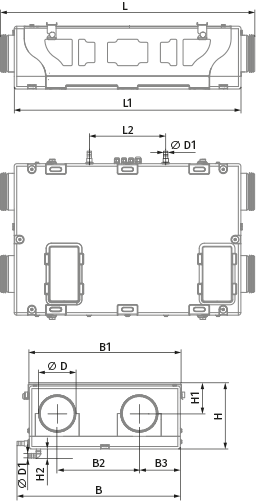

| Ø D | Ø D1 | B | B1 | B2 | B3 | L | L1 | L2 | H | H1 | H2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 | – | 650 | 600 | 326 | 163 | 900 | 1009 | 302 | 264 | 110 | – |
| Name | Photo | Description |
|---|---|---|
| Blauberg EVH 150-0.8-1 S21 V.2 |
|
Electric duct preheater for heat exchanger freeze protection |
| Blauberg EVH 150-1.2-1 S21 V.2 |
|
Electric duct preheater for heat exchanger freeze protection |
| Blauberg EVH 150-1.7-1 S21 V.2 |
|
Electric duct preheater for heat exchanger freeze protection |
| Blauberg EVH 150-2.0-1 S21 V.2 |
|
Electric duct preheater for heat exchanger freeze protection |
| Name | Photo | Description |
|---|---|---|
| Blauberg S25 |
|
LCD control panel |
| Blauberg S22 |
|
Control panels |
| Blauberg S22 Wi-Fi |
|
Control panels |
| Name | Photo | Description |
|---|---|---|
| Blauberg CD-1 |
|
CO2 sensors |
| Blauberg CD-2 |
|
CO2 sensors |
| Name | Photo | Description |
|---|---|---|
| Blauberg FS2 |
|
Humidity sensor |
| Name | Photo | Description |
|---|---|---|
| Blauberg FP 214x186x48 F7 |
|
F7 panel filter |
| Blauberg FP 214x186x18 G4 |
|
G4 panel filter |
