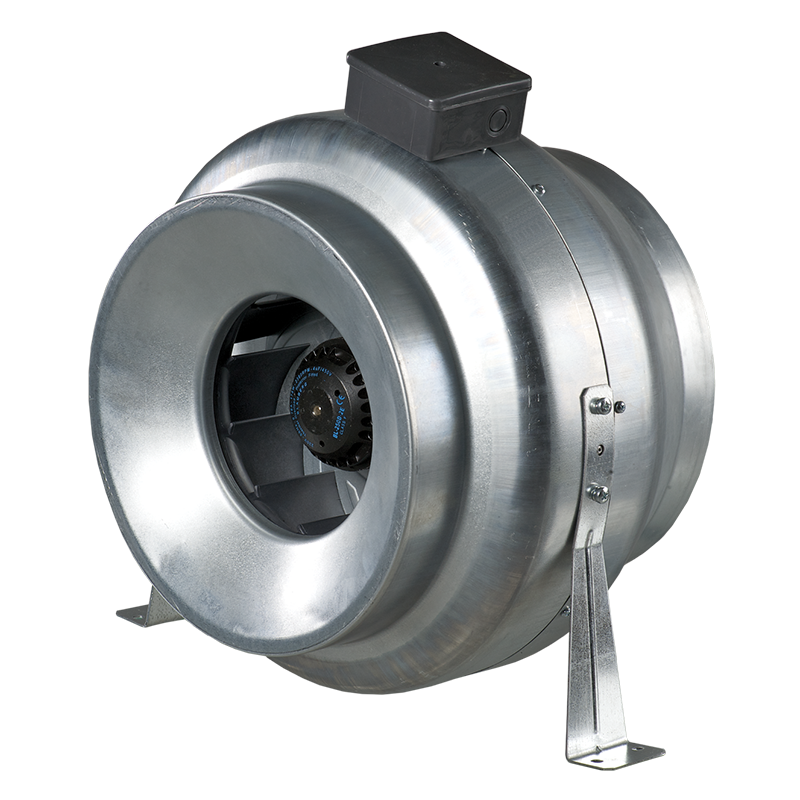

/ Product catalogue / Commercial and industrial ventilation / Inline fans / For round duct / Centro-MZ / Centro-MZ 150 max
| Unit of measurement | Centro-MZ 150 max | ||
| Phases | - | 1 | |
| Minimum supply voltage | V | 220 | |
| Maximum supply voltage | V | 240 | |
| Power supply frequency | Hz | 50 | 60 |
| Maximum airflow | m³/h | 710 | |
| Weight | kg | 4.8 | |
| Transported air temperature (max) | °С | 60 | |
| Transported air temperature (min) | °С | -25 | |
| Ingress protection rating | - | IPX4 | |
| Ingress protection rating of the drive | - | IP44 | |
| Impeller material | - | Plastic | |
| Trademark | Blauberg | |||||
| Model | Centro-MZ 150 max | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| -52.6 | A+ | -25.5 | C | -10 | E | |
| Type of ventilation unit | Unidirectional | |||||
| Type of drive installed | Variable speed | |||||
| Type of heat recovery system | None | |||||
| Maximum flow rate (m³/h) | 600 | |||||
| Electric power input (W) | 126 | |||||
| Reference flow rate (m³/s) | 0.117 | |||||
| Reference pressure difference (Pa) | 50 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0.21 | |||||
| Control typology | Local demand control | |||||
| Maximum external leakage rates (%) | 2.7 | |||||
| Declared typology | RVU UVU | |||||
| Sound power level (dB(A)) | 69 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 111 | 111 | 111 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 5536 | 2830 | 1280 | ||||

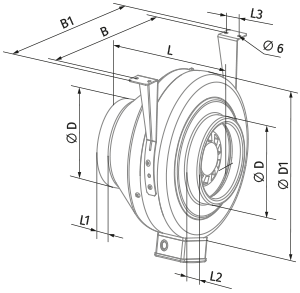

| Ø D | Ø D1 | B | B1 | L | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|
| 149 | 345 | 355 | 395 | 230 | 20 | 20 | 40 |
| Name | Photo | Description |
|---|---|---|

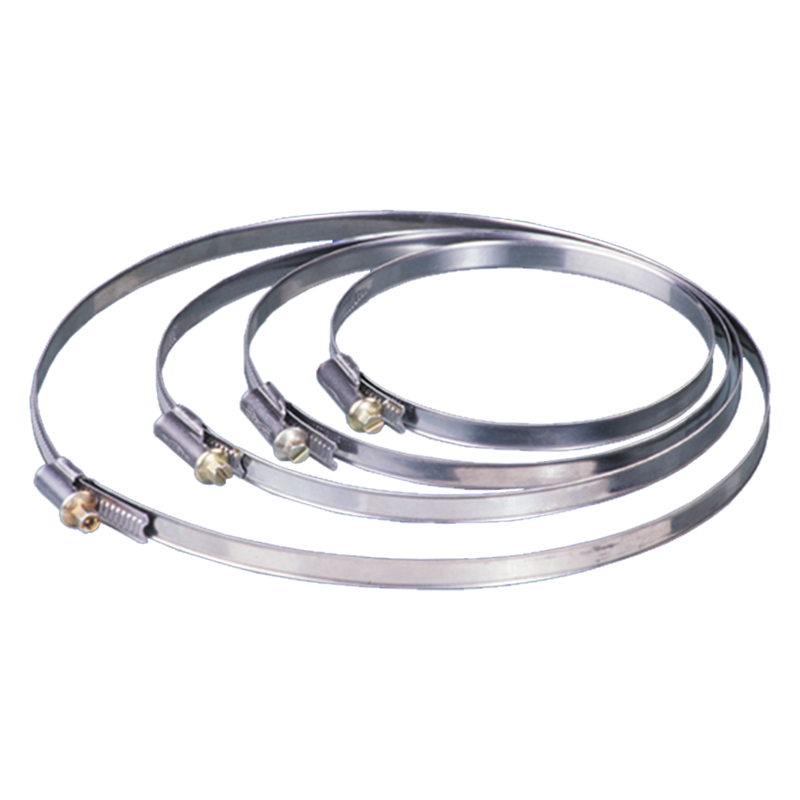

| Blauberg K 150 |
|
Clamp for round flexible ducts |
