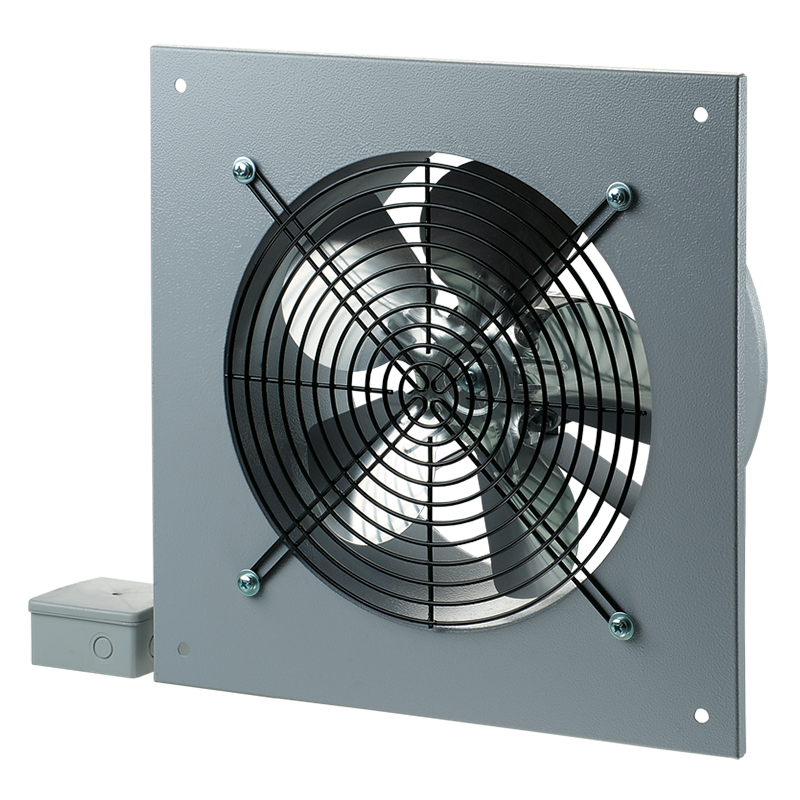

/ Product catalogue / Commercial and industrial ventilation / Axial fans / Wall / Axis-QA / Axis-QA 200
| Unit of measurement | Axis-QA 200 | ||
| Phases | - | 1 | |
| Minimum supply voltage | V | 220 | |
| Maximum supply voltage | V | 240 | |
| Power supply frequency | Hz | 50 | 60 |
| Maximum airflow | m³/h | 390 | |
| Weight | kg | 2.82 | |
| Transported air temperature (max) | °С | 40 | |
| Transported air temperature (min) | °С | -30 | |
| Ingress protection rating | - | IPX4 | |
| Ingress protection rating of the drive | - | IP44 | |
| Impeller material | - | Aluminium | |
| Trademark | Blauberg |
| Model | Axis-QA 200 |
| Type of drive installed | External MSD or VSD |
| Type of heat recovery system | None |
| Nominal external pressure (Pa) | 42 |
| Maximum external leakage rates (%) | 2.7 |
| Static efficiency (%) | 8.6 |
| Effective electric power input (kW) | 0.027 |
| Sound power level (dB(A)) | 52 |
| Declared typology | NRVU UVU |

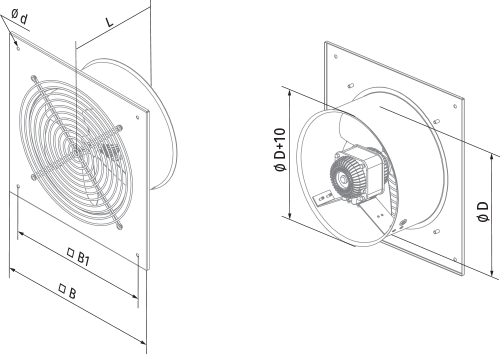

| ØD | Ød | B | B1 | L |
|---|---|---|---|---|
| 208 | 7 | 312 | 260 | 120 |
| Name | Photo | Description |
|---|---|---|

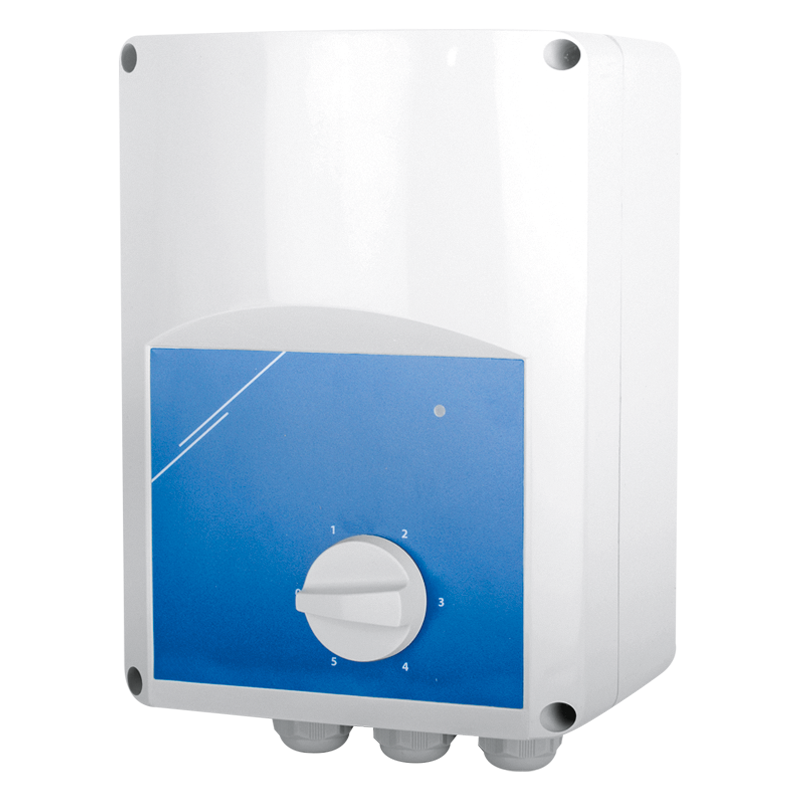

| Blauberg CDR5E E3.5 TP |
|
Single phase speed controller |
| Blauberg CDR5E E5.0 TP |
|
Single phase speed controller |
| Blauberg CDR5E E7.5 TP |
|
Single phase speed controller |
| Blauberg CDR5E E1.5 TP |
|
Single phase speed controller |
